RAVENNA to anything. Anything to RAVENNA. Including Sample Rate Conversion!

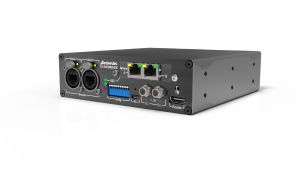

The FLX-RAVENNA/SRC is a compact RAVENNA-to-anything converter with built-in 64x64ch Sample Rate Converter (SRC). It can convert 64x64ch of RAVENNA to to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-mkII or another Flexiverter.
Overview
Features

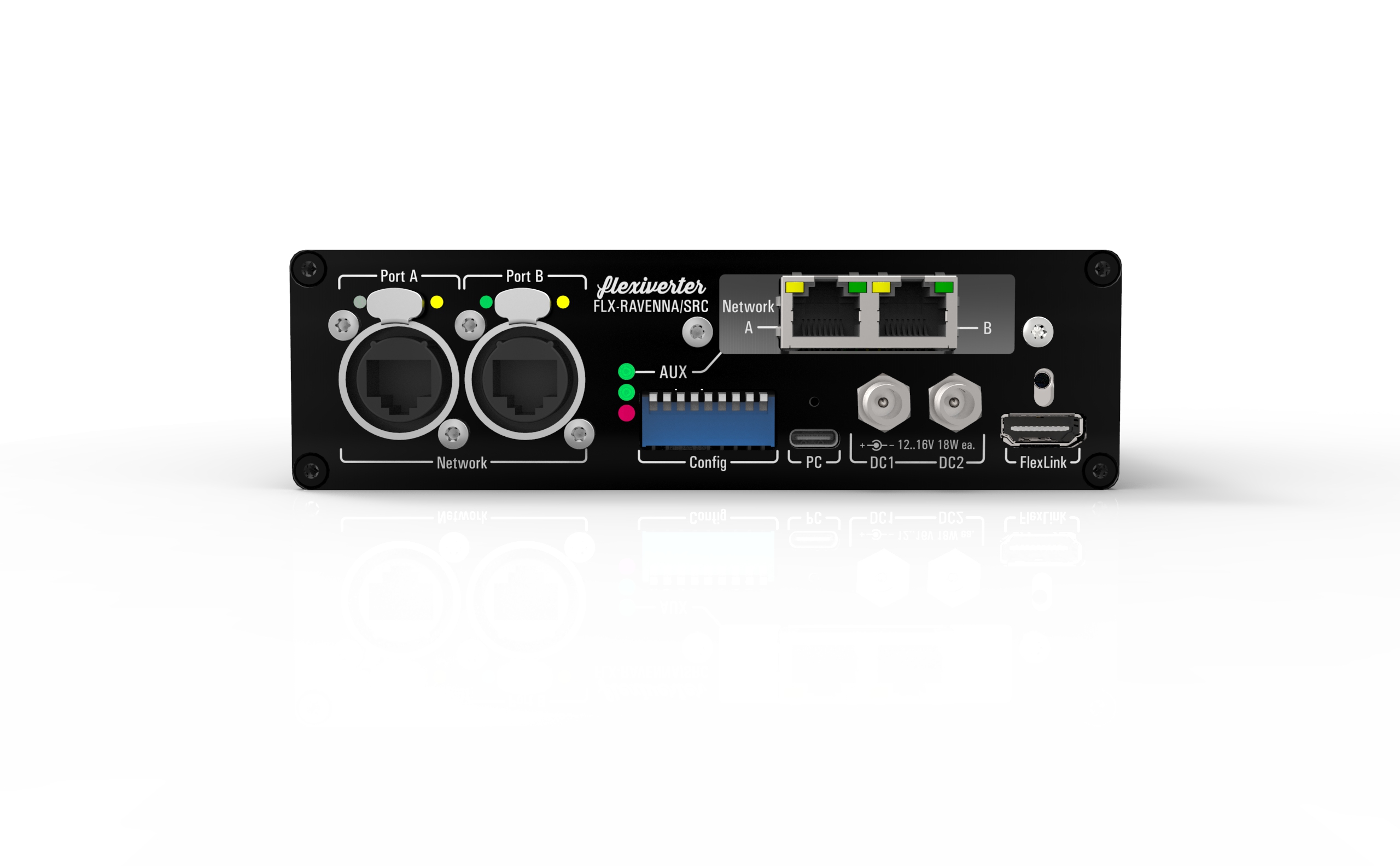

- Two RAVENNA ports on Ethercon connectors, with built-in ST2110 and AES67 support
- Based on the proven Merging/Sennheiser ZMAN module
- AUX port accepting any of the AUX Cards as conversion source/destination
- When combined with AUX-RAVENNA, it acts as Ravenna/Ravenna bridge with full network and clock domain separation. Other targets (e.g. DANTE) can be realized with the appropriate AUX card
- 64x64ch bi-directional Sample Rate Converter with top-notch specifications (>120dB THD+N, >134dB DNR), can be bypassed when desired
- Supports sample rates from 44.1 to 192kHz on either side, i.e. can do 96kHz MADI <> 48kHz Dante with 64 channels in each direction
- FlexLink port for lowest latency, bi-directional transfer of 192 channels audio, clock and power
- Remote control via USB: web remote (no software required), or UART command line
- Triple-redundant power supply
Additional features when connected to the MVR-mkII
- True channel-wise routing of all available channels (built-in plus AUX card)
