Convert sample rates between all of your interfaces!

To add even more power to your multiverter, a sample rate converter hardware module is available. It features up to 128 channel unidirectional or 64x64 channel bidirectional, asynchronous sample rate conversion between two arbitrary sample rates and interfaces. Finally you can convert 96kHz streams into 48kHz and vice versa, or accept any incoming signal without caring about the master clock!

Previous Next

The evolution of world's most versatile format converter: MVR-mkII

Connect directly to your console's MADI-TP!

With the MTA-64, the multiverter becomes capable of connecting to the MADI-TP (MADI over Twisted Pair) variants used in DiGiCo and Soundcraft/Studer/Harman desks. It's simply connected between the MVR-64's MADI-TP port and your console or stagebox and adapts signal levels and pinouts to your needs. What's more: you don't need any special crossover cables thanks to internal MDIX logic - any standard 1:1 Cat5 cable will do, no matter if you want to connect to your console or the stagebox.

 MADI optical to anything. Anything to MADI optical. Including Sample Rate Conversion!

The FLX-MADI/SRC-SFP is a compact MADI-to-anything converter with built-in 64x64ch Sample Rate Converter (SRC). It can convert 64x64ch (even at 96k) of MADI to to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-mkII or another Flexiverter.

 MADI coaxial to anything. Anything to MADI coaxial. Including Sample Rate Conversion!

The FLX-MADI/SRC-COAX is a compact MADI-to-anything converter with built-in 64x64ch Sample Rate Converter (SRC). It can convert 64x64ch (even at 96k) of MADI to to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-mkII or another Flexiverter.

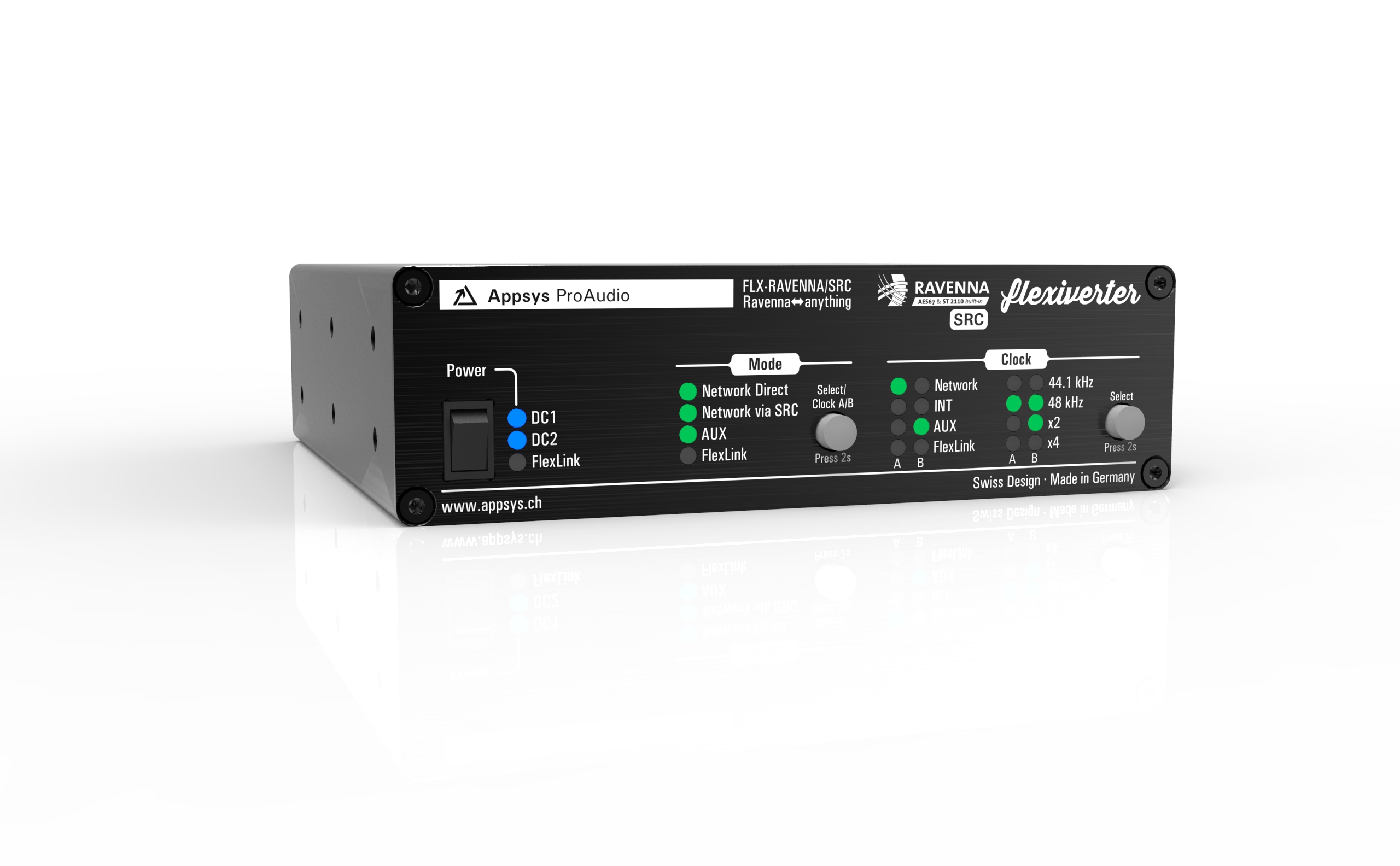

 RAVENNA to anything. Anything to RAVENNA. Including Sample Rate Conversion!

The FLX-RAVENNA/SRC is a compact RAVENNA-to-anything converter with built-in 64x64ch Sample Rate Converter (SRC). It can convert 64x64ch of RAVENNA to to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-mkII or another Flexiverter.

RAVENNA to anything. Anything to RAVENNA.

The FLX-RAVENNA is a compact RAVENNA-to-anything converter. It features a 64x64ch built in Ravenna Port, which can be converted to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-64 or another Flexiverter.

 Dante/Dante bridging with Sample Rate Conversion!

Our Dante/Dante bridge consists of the FLX-DANTE/SRC module with built-in AUX-DANTE card. Two independent Dante modules allow physical network isolation, while all 64x64 channels of audio are passed both ways between the networks. The built-in, high-end, bidirectional Sample Rate Converter takes care of matching audio between the different master clocks and possibly different sample rates of both networks.

AES3 to anything. Anything to AES3.

The FLX-AES3 is a compact AES3-to-anything converter. It has 16x16 channels of AES3 built in, which can be converted to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-64 or another Flexiverter.

 AES3 to anything. Anything to AES3. Including Sample Rate Conversion!

The FLX-AES3/SRC is a compact AES3-to-anything converter with built-in Sample Rate Converters. It features 16x16 channels of AES3 , which can be converted to any protocol installed into the AUX slot. Additionally, all AES3 inputs can be routed through individual built-in SRCs to match a common clock. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-mkII or another Flexiverter.

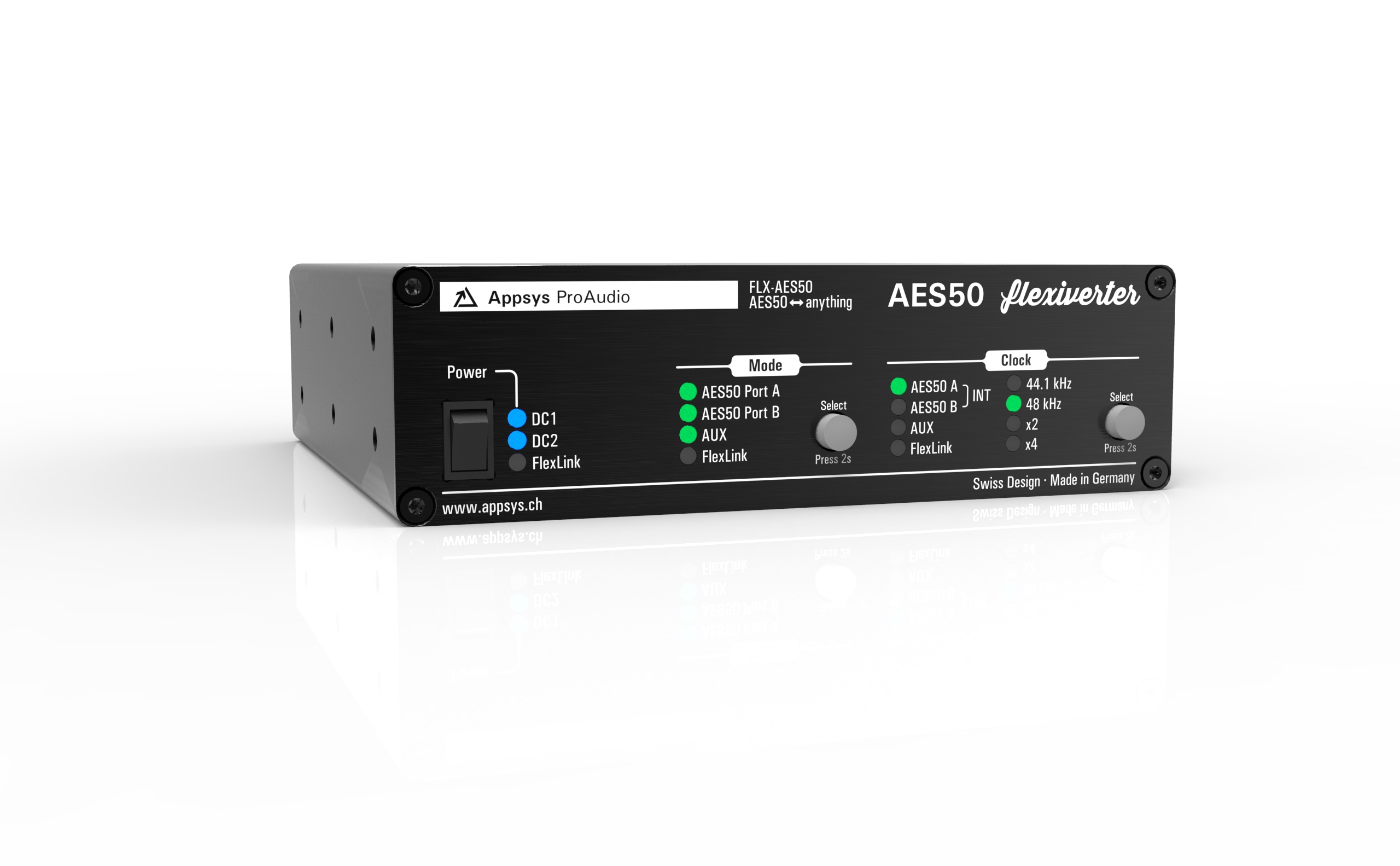

AES50 to anything. Anything to AES50.

The FLX-AES50 is a compact AES50-to-anything converter. It has two ports (96x96 channels@48k, 48x48 channels@96k) of AES50 built in, which can be converted to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-64 or another Flexiverter.

DANTE to anything. Anything to DANTE.

The FLX-DANTE is a compact DANTE-to-anything converter. It features a 64x64ch built in Dante Port, which can be converted to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-64 or another Flexiverter.

 DANTE to anything. Anything to DANTE. Including Sample Rate Conversion!

The FLX-DANTE/SRC is a compact DANTE-to-anything converter with built-in 64x64ch Sample Rate Converter (SRC). It can convert 64x64ch of Dante to to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-mkII or another Flexiverter.

MADI to anything. Anything to MADI.

The FLX-MADI is a compact MADI-to-anything converter. It features one MADI SFP and one MADI coaxial port. The unit can be used to translate between the built-in ports, or can be used to convert to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-64 or another Flexiverter.

Select the peer format for your Flexiverter

Accessories for your Multiverter and Flexiverter

Bidirectional ADAT/TOSLINK Extender Kit

The ADX-16 Kit has been designed to overcome the length limitations (5m/16 ft) of optical TOSLINK® interconnects running ADAT Lightpipe®, S/PDIF® and other protocols. The kit enables you to run two TOSLINK connections (one in each direction) over a single Cat5 cable and up to 100m / 330ft. in length, opening up a range of new possibilities (e.g. for audio distribution within a building).

Active ADAT/Toslink-Splitter & Repeater

The ADS-8 ADAT/Toslink Splitter allows you to connect any signal source to two sinks. The active design overcomes the limitations of traditional passive splitters: They essentially half the amount of light on each output, causing problems because the attenuated signal is too weak for proper transmission of high-speed data. In contrast, the ADS-8 receives the optical signal, converts it to an electrical signal which can be split without loss to the out put transmitters which operate on each port with full power. As a side effect, it acts as signal repeater which doubles the reach of each connection.

Send ADAT over Cat5, up to 100 meters!

Without any kind of compression or other potentially sound-degrading conversions, the input signal is 100% bitwise transmitted in real time to the output. Ideally suited for connecting your PC to your HiFi equipment, for upgrading your network cabling to a true HiFi-capable sound bridge, or to listen to music in uncompromising quality anywhere you can reach with standard network cabling. Or use the extender in your recording studio to overcome the 5 meter length limit of ADAT connections!
