RAVENNA to anything. Anything to RAVENNA.

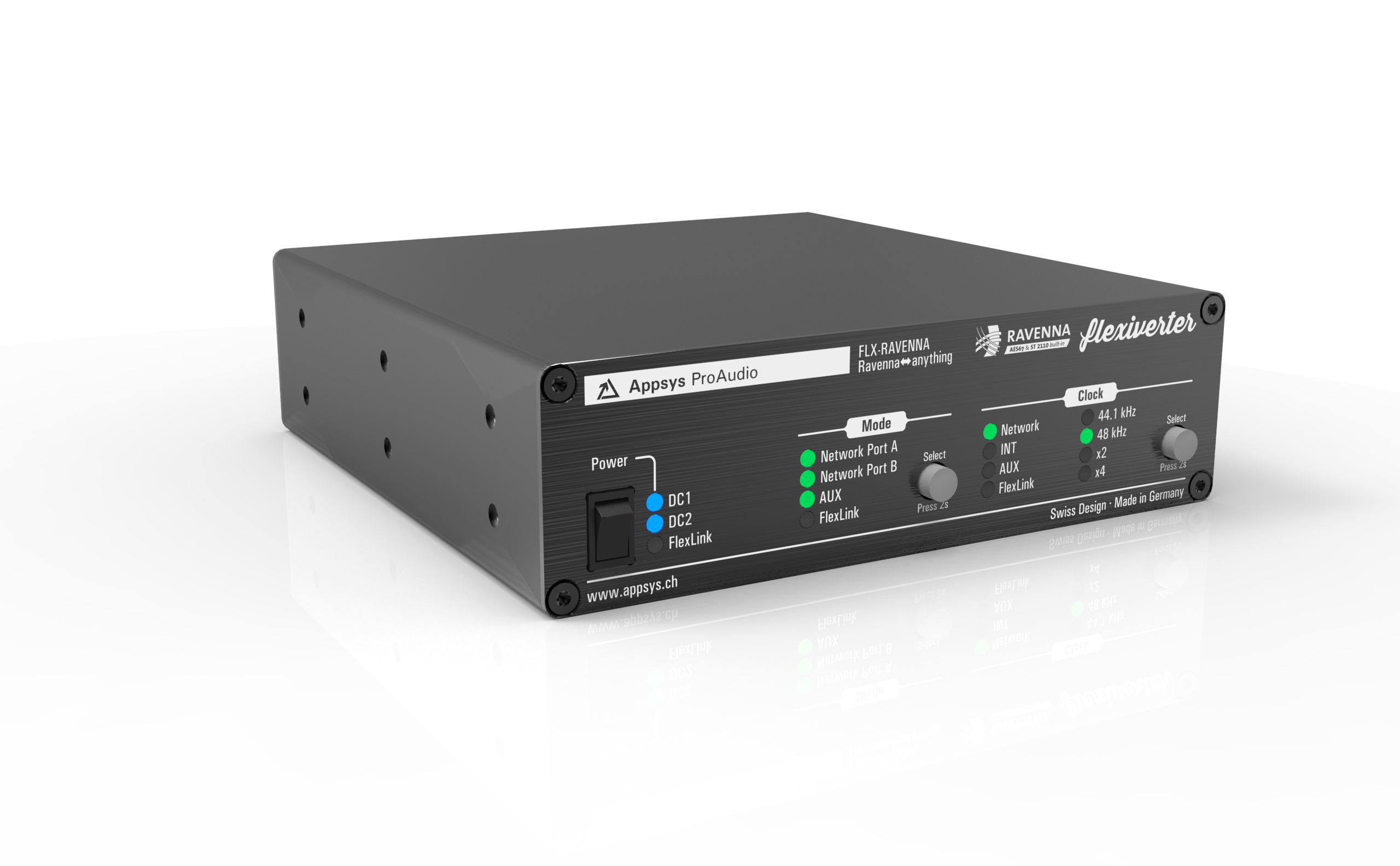

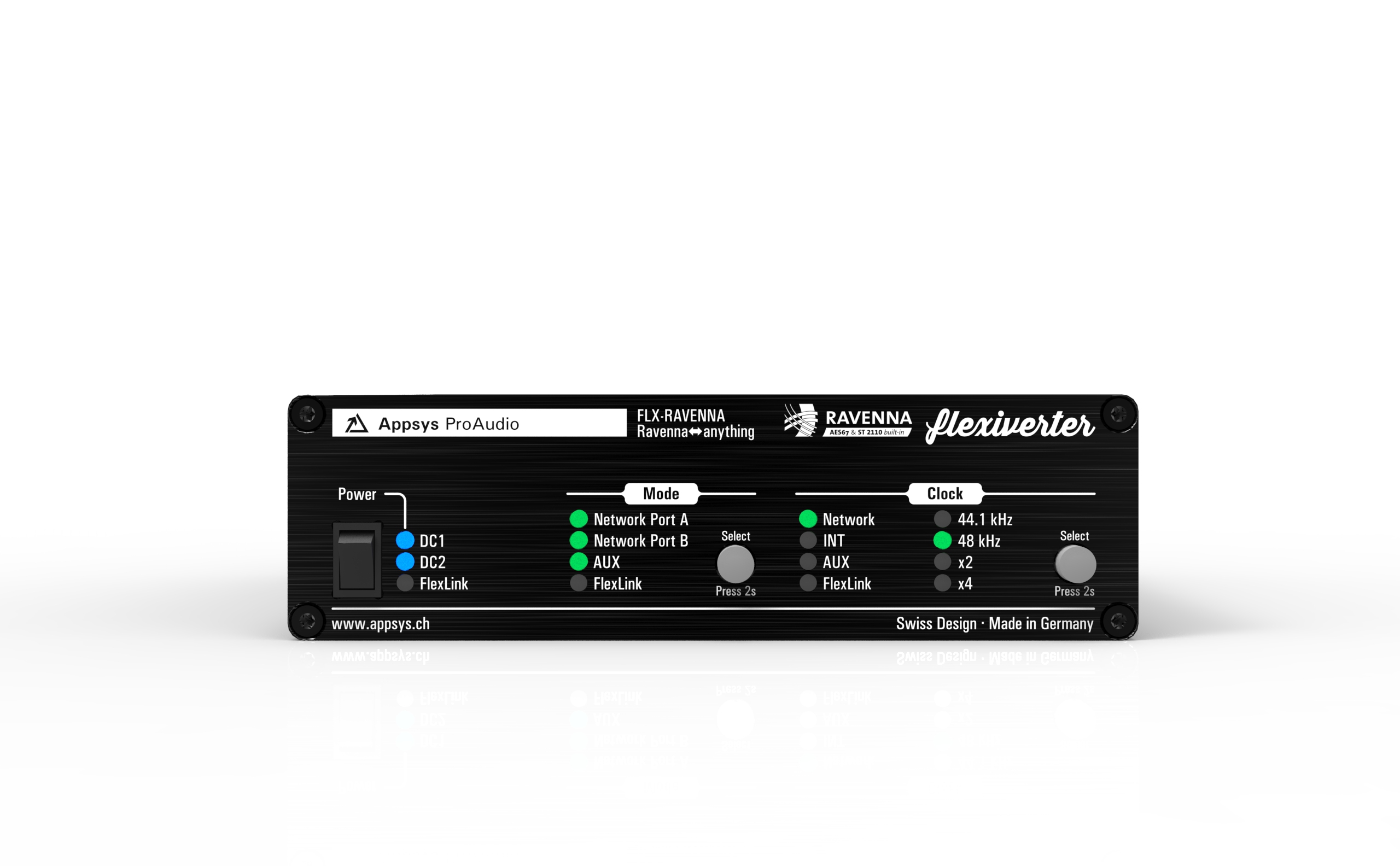

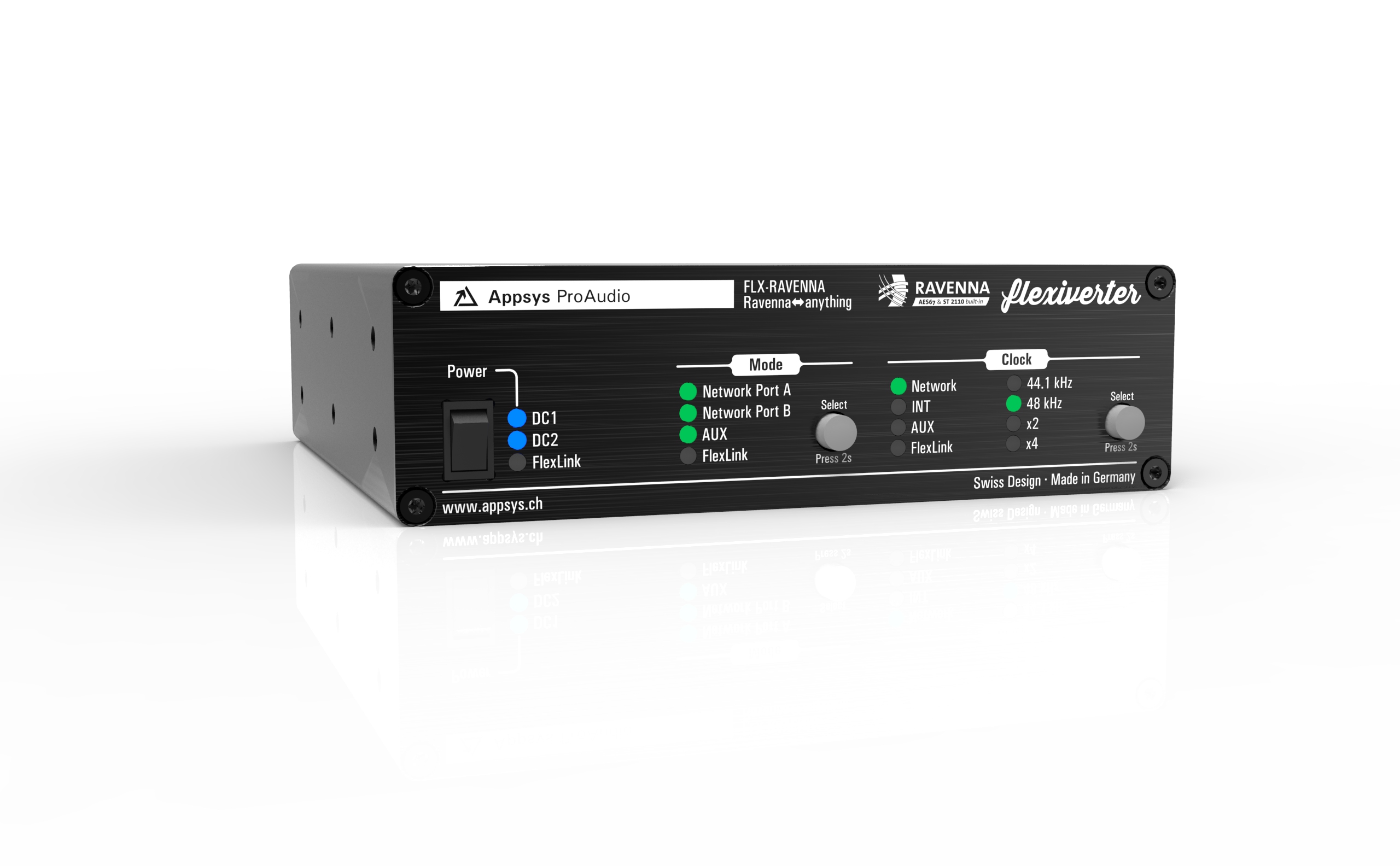

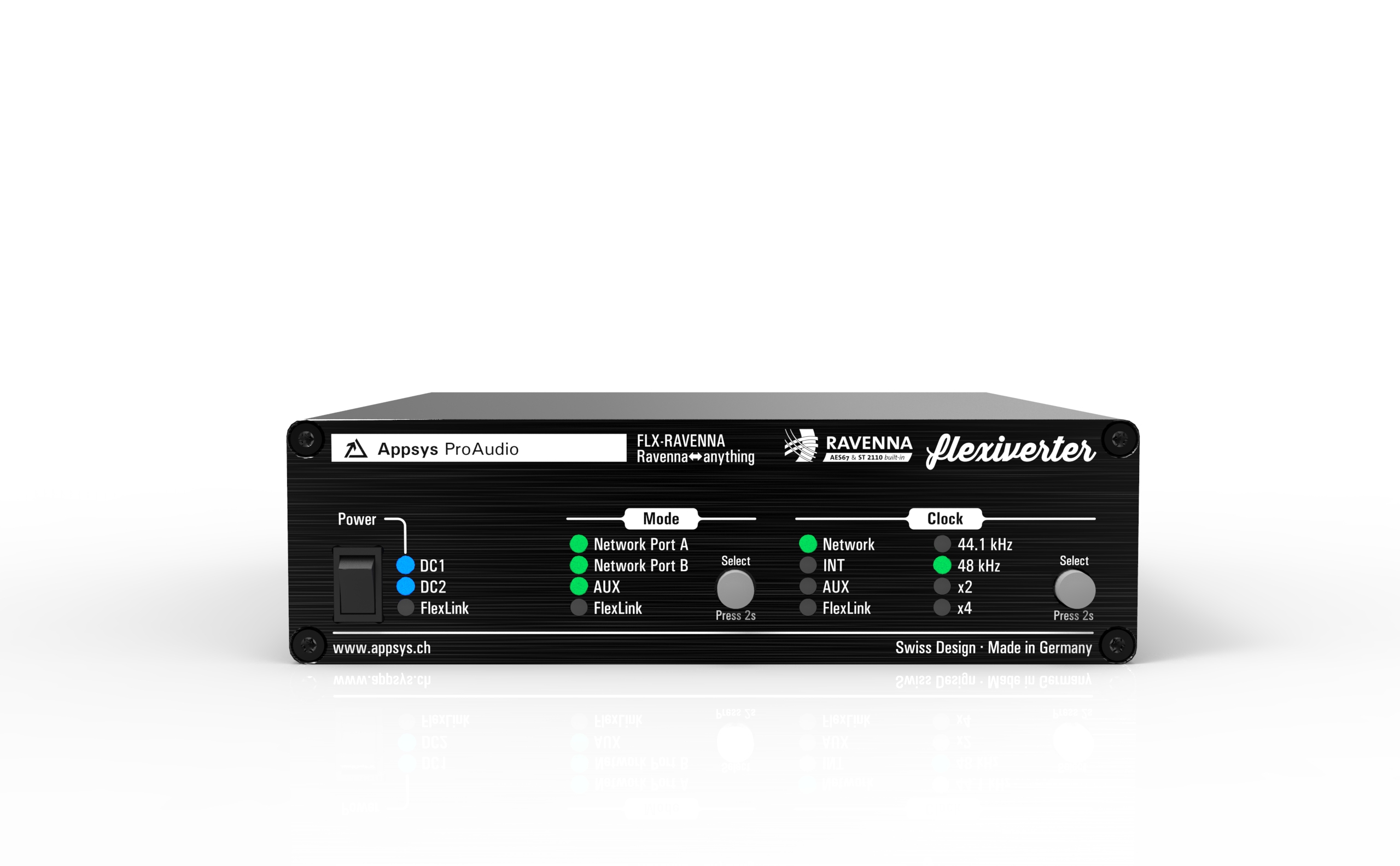

The FLX-RAVENNA is a compact RAVENNA-to-anything converter. It features a 64x64ch built in Ravenna Port, which can be converted to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-64 or another Flexiverter.
Overview
Features

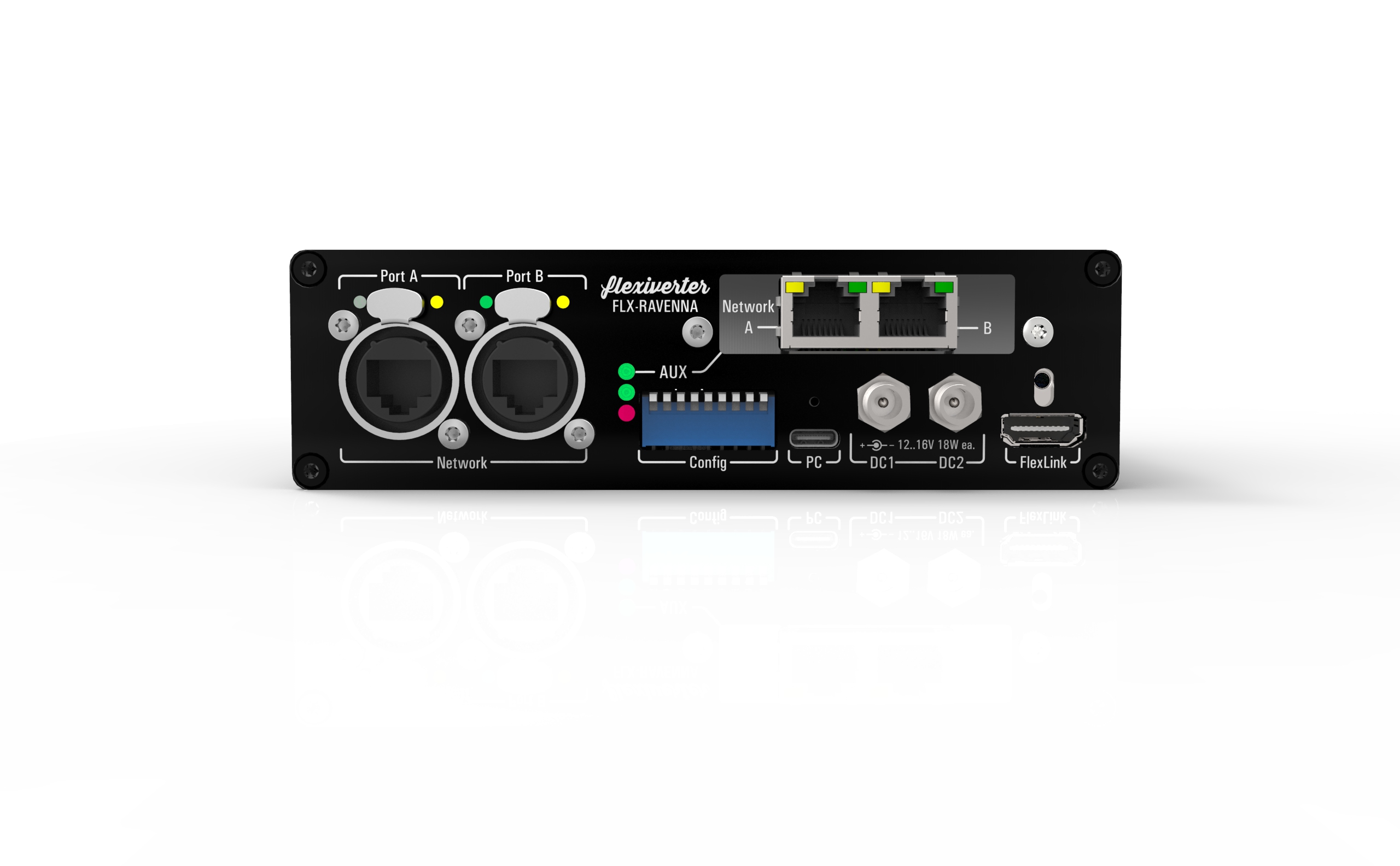

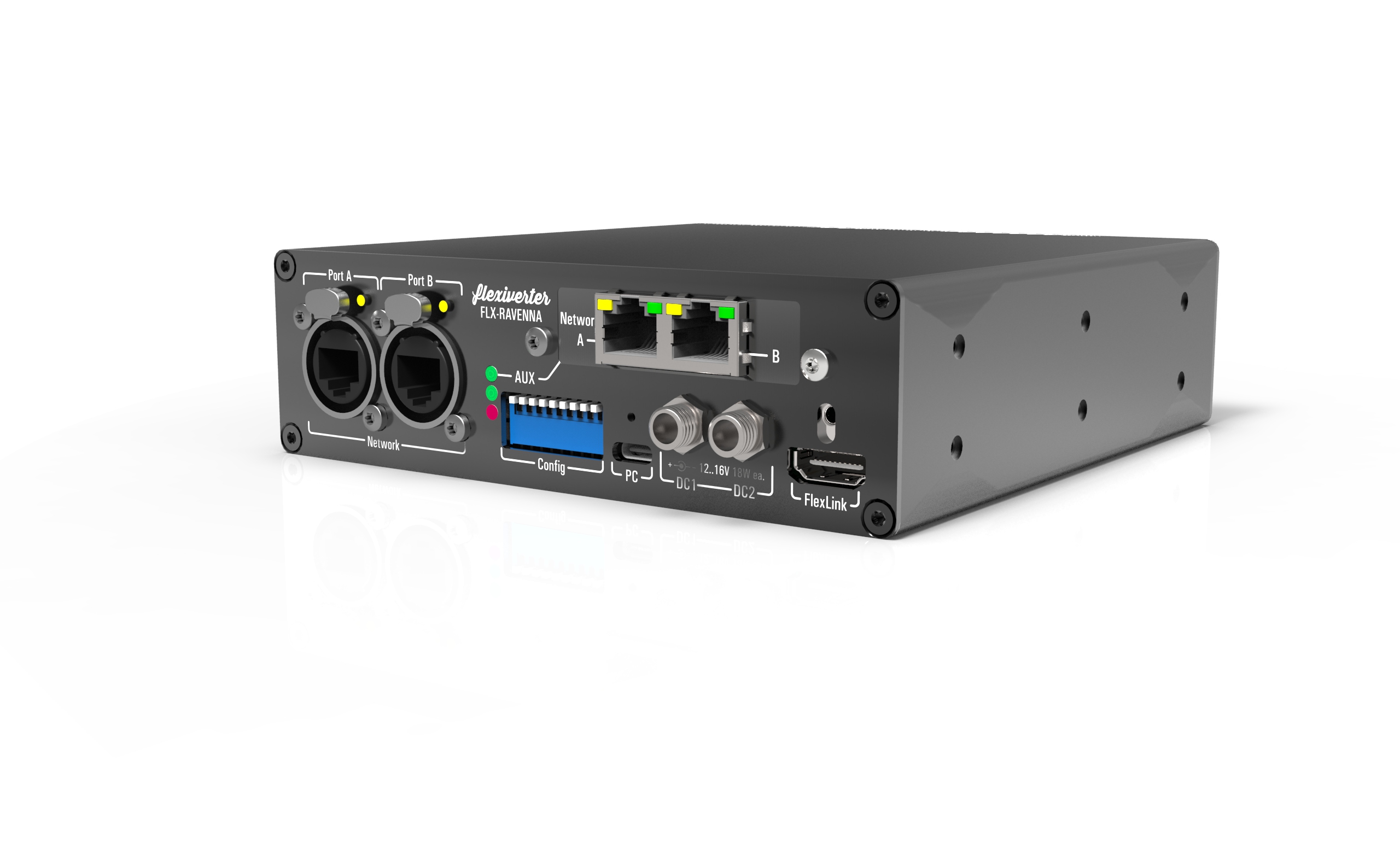

- Two RAVENNA ports on Ethercon connectors, with ST2110 and AES67 built-in
- Based on the proven Merging/Sennheiser ZMAN module
- AUX port accepting any of the AUX Cards as conversion source/destination
- Supports sample rates from 44.1 to 192kHz
- FlexLink port for lowest latency, bi-directional transfer of 192 channels audio, clock and power
- Remote control via USB: web remote (no software required), or UART command line
- Triple-redundant power supply
Additional features when connected to the Multiverter
- True channel-wise routing of all available channels (built-in plus AUX card)
- Sample-rate conversion using the SRC-64
